semi-automatic V shape book scanner
the fastest available on the market at 800 pages/hour
highest image resolution of 300, 400, 600, 800 dpi
on pages A3 or A2 format

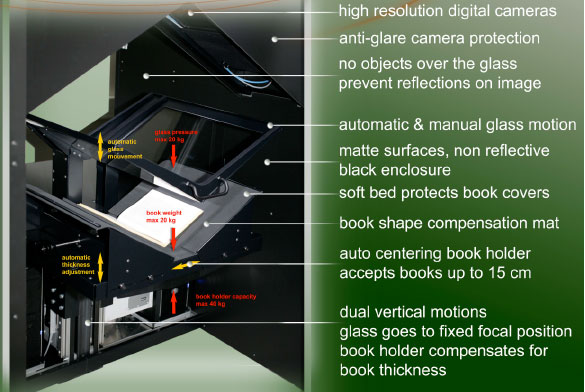

The V shape book holder is open at 120 degrees. Its vertical movement is motorized to accommodate any book up to 15 cm (6 in) thick and up to 20 kg (44 lb).

The V shape glass is motorized to move away from the book for manual page turning. It comes down on the book exactly at the same position to insure constant focal distance to the cameras.

Automatic thickness measure and compensation is made during book loading. The glass can be set to press wavy paper with a limited force to insure page flattening.



DOCUMENTS ACCEPTED
Document types books, manuscripts, magazines, registers
bound newspapers, notebooks, photo albums
lose sheets, fold-outs, inserts
Page size max 315 x 540 mm / 12.4 x 21.25 in































THE SCANNER



















LIGHTS

Light source is daylight white LED (6000 °K) preserving authenticity of colors.
Dark enclosure protects the original from exposure to other external light sources.
No shadows in the binding as lights are placed in line with the binding
No light disturbance to operators’ eyes, lights are not visible to operator































IMAGE QUALITY

No reflection between opposite pages (preserves dark and bright colors)
Light balance equalizes the light over the surface of the page
No glare on images, even with very glossy documents





















V-SHAPE GLASS

Page flattening, none, partial or pressed under V glass
Glass pressure on the book is scalable from 0 to 20 Kg, for books with wavy pages
Soft touch V shape glass junction is not sharp
Safe & effortless glass motion in manual mode























OPTIMAL IN BINDING VISIBILITY

Un-scanned area in binding is only 2 mm wide (less than one character)
